Colortran i48 Quad Dimmer Rack, 48 Channel
Description
This Colortran i48 Quad Dimmer Rack shows signs of heavy wear but is in good working condition.

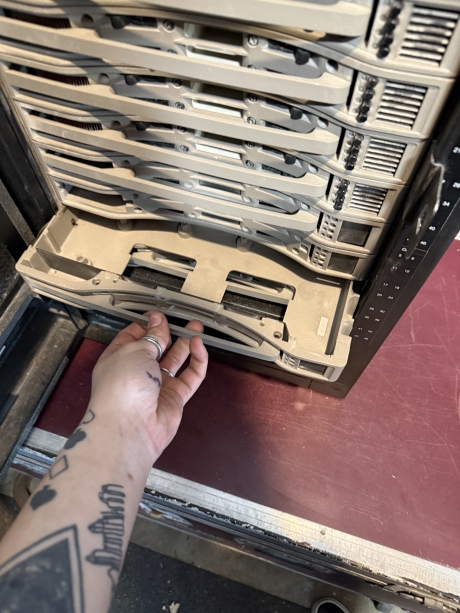

The i48 Quad Dimmer rack contains 12 module slots for housing up to 48 dimmers. The rack offers an option for a redundant control module that provides seamless backup in case of the main control module’s failure or removal from the rack.

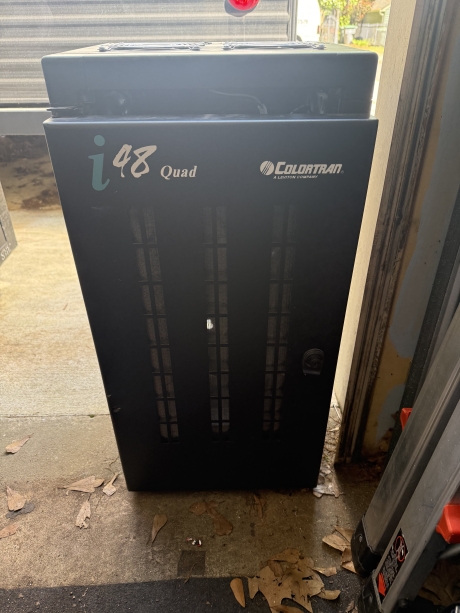

The rack is built from extruded aluminum and code gauge steel measuring 31” high x 16” wide x 16” deep. All exterior surfaces are finished in textured black polyurethane coat finish. Knock-outs are provided in top and bottom for conduit access. Since the racks require no rear or side access, racks can be wall mounted side-to-side. The front of the rack is completely open, allowing clear installer access to all line, load and control terminations. Each load termination accepts up to #4 AWG wire.

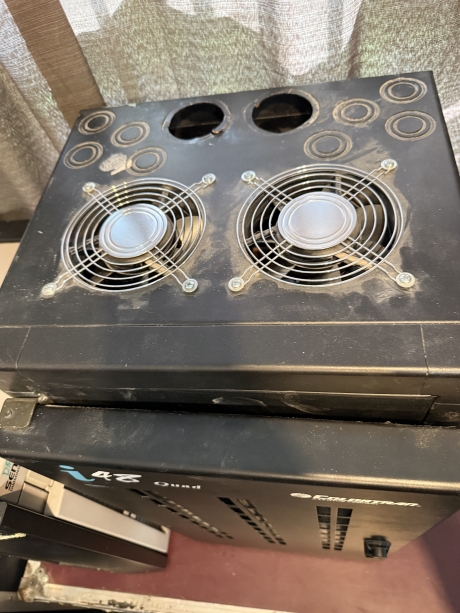

The cooling fans and their control unit are accessed through removable modular housing for easy cleaning and maintenance. Each dimmer receives fresh air through the door mounted electrostatic filter. Each rack has a locking door.
This item has been listed by a member of our worldwide community. Buying a brokered item like this is the perfect way to purchase hard to find equipment at a great price. All brokered item sales include a 72 hour (3 business days) quality inspection window. Once the item arrives, just let us know if you are unsatisfied- your purchase is guaranteed by UsedLighting.com!
Features
- Compact wall-mount rack houses up to 48 individual dimmers.
- 350 microsecond filter chokes.
- All rack configuration data is stored in the rack electronics – changing control modules does not require any re-programming
- Stores 100 timed Backup Looks.
- Stores 12 Looks for house or stage.
- Stacked design provides fresh cooling air to each module, allowing full frontal access to interior wiring and terminations.
- Built-in Panic Function for each dimmer.
- 120V Units, UL Listed and C-UL Listed.
Additional Details
| Ships From: | Memphis, TN, USA |
| Manufacturer: | Leviton |
| Condition: | Good |
| Item #: | 59879 (Brokered) |
| Tags: | Dimmers, Leviton/nsi |
- (1) i48 Quad Dimmer Rack, 48 Channel

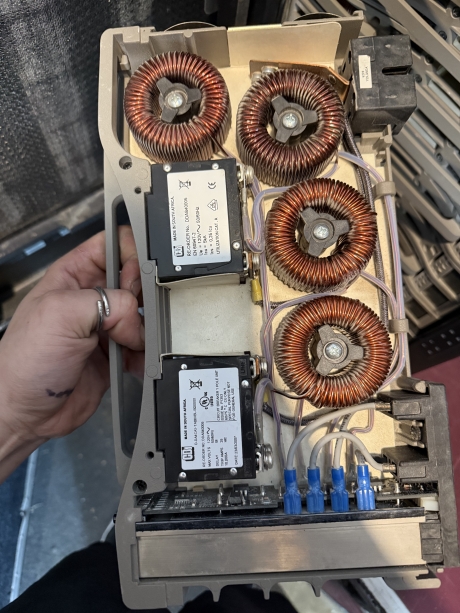

- (12) Dimmer Module (8 full, 4 empty)
