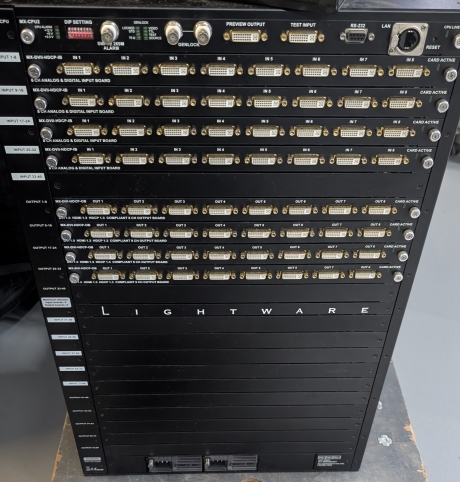

Lightware MX-FR65R 65x65 Crosspoint MX Modular Digital Router
Description
Ships from outside of the United States
This Lightware MX-FR65R 65x65 Crosspoint MX Modular Digital Router shows signs of wear and tear, but is in good working condition.
The Lightware MX-FR65R is a 65x65 Crosspoint MX modular digital router frame built for large-format AV switching in corporate, education, broadcast, and high-end home theater environments. Its non-blocking crosspoint matrix architecture lets you route any source to any output, including one-to-many distribution, without introducing processing delay. As part of Lightware’s MX series, the chassis supports a modular, expandable system design, so you can build a routing platform that matches your signal and connector requirements via compatible I/O boards.
Routing Performance for High-Resolution Digital Video
The MX Series supports 4K UHD, 2560x1600, and 1920x1080@120Hz resolutions, along with standard HDMI 3D formats and all HDMI 1.3 resolutions, operating without signal latency. It also supports HDTV formats including 720p, 1080i, and 1080p, with or without HDCP encryption (relevant I/O boards are fully HDCP compliant). Both HDCP-encrypted and non-HDCP components can be installed in the same system within the same chassis.
Signal Integrity and Diagnostics
For reliable long-run installations, the router includes built-in cable compensation on each DVI, HDMI, or SDI input (per port), plus pixel-accurate reclocking on each output to deliver a clean, jitter-free signal. Integrated frame detection and signal analysis provide visibility into timing, frequencies, scan mode, HDCP status, color range, color space, and audio sample rate, helping speed up troubleshooting during commissioning and live operation.
EDID Control and System Integration
Advanced EDID management allows you to emulate EDID on inputs independently and store attached monitor EDIDs in internal memory, with 100 factory presets and 50 user programmable EDID memories (256-Byte Extended EDID v1.3). Control and configuration are available via the front panel (buttons and a 4 x 20 character LCD), USB, RS-232/422 (selectable baud rates), Ethernet (10/100), and the built-in website. The Lightware Device Controller (LDC) software is available for Windows and macOS, and the matrix supports multiple simultaneous TCP/IP connections with a simple ASCII based protocol. Remote Input Control over DDC (RICOD) is also supported for switching inputs remotely on Lightware signal extenders without additional control cabling.
Power and Environmental Specifications
The chassis accepts 100 to 240V AC, 50/60 Hz on a standard IEC connector, and supports power failure memory so it restarts with the latest configuration after power loss. DVI +5V power support provides 500 mA constant current output on each DVI or HDMI output to power long distance fiber optical cables or other DVI powered devices. Operational temperature is 0°C to +50°C (storage -40°C to +70°C), humidity is 10 to 90% non-condensing, and operational altitude is 2000 m. The unit is RoHS compliant and meets EN 55022 Class B EMI/EMC compliance. Maximum power consumption is 1500 W.
Additional Details
| Ships From: | Hong Kong |
| Manufacturer: | Lightware |
| Condition: | Good |
| Model: | MX-DVI-FR65R |
| Item #: | 62314 | Brokered |
| Tags: | Splitters & wireless, Splitters |
- Non-blocking Crosspoint Matrix Architecture: The router allows any input to be switched to any output or more outputs simultaneously.
- 4K UHD & 3D Formats Support Without Latency: The MX Series supports the highest 4K UHD, 2560x1600 and 1920x1080@120Hz resolutions, standard HDMI 3D formats and all HDMI 1.3 resolutions, operating without signal latency. 1080p HDTV
- Supports All HDTV Resolutions and HDCP: 720p, 1080i and 1080p etc. signals are supported with or without HDCP encryption.
- 3D Support: Lightware provides complex, integrated solutions for the digital age, also delivering 3D content in the case of certain I/O boards.
- UMX Technology: UMX (Universal MatriX) technology was developed to support various analog and digital video and audio signal formats with several input connection possibilities.
- HDCP Capability: Relevant I/O boards are fully HDCP compliant. Both HDCP-encrypted and non-HDCP components can be installed in the same system within the same chassis.
- No Signal Latency With Zero Frame Delay: The signal management architecture ensures that there is no delay added between the input and the output.
- Advanced EDID Management: The user can emulate any EDID on the inputs independently, read out and store any attached monitor's EDID in the internal memory locations.
- Built-in Cable Compensation: Each DVI, HDMI or SDI input port contains an individual built-in cable extender.
- Pixel Accurate Reclocking: Each output has a clean, jitter free signal, eliminating signal instability and distortion caused by long cables or connector reflections.
- Frame Detector and Signal Analysis: The exact video and audio signal format can be determined such as timing, frequencies, scan mode, HDCP encryption, color range, color space and audio sample rate.
- Remote Input Control over DDC (RICOD): This technology is designed to switch inputs remotely on Lightware signal extenders without any additional control cabling. The RICOD master device can control the RICOD slave device connected to its input port.
- DVI +5V Power Support: POWER 500 mA constant current output on each DVI or HDMI output to power long distance fiber optical cables or other DVI powered devices.
- Redundant Power Supply: Accepting AC voltages from 100 to 240 Volts with 50 or 60 Hz line frequency on standard IEC connector. Redundant hot-swappable PSUs on selected models.
- Power Failure Memory: The matrix router starts with its latest configuration settings when powered on or after a power failure. Every setting is stored in a non-volatile memory.
- Front Panel Control: Sources and destinations have their own buttons to be selected. Single switches can be executed or crosspoint presets can be saved and reloaded. Almost every setting can be configured through the front panel LCD menu. Series Modular Matrix Frames – User Manual
- Lightware Device Controller (LDC): The LDC application keeps receiving updates, adding new features and tools. The LDC is available for both Windows and macOS operating systems.
- Built-in Website: Easy access from a web browser to control and configure the matrix in systems where the software is not allowed to be installed.
- Ethernet Control: Multiple simultaneous TCP/IP connections are available with simple ASCII based protocol for controlling and configuring the matrix router.
- USB Control: Easily accessible front panel USB configuration port.
- EDID memory: 100 factory preset and 50 user programmable
- EDID emulation: 256-Byte Extended EDID v1.3
- Front panel buttons: Yes
- Front panel LCD: Yes, 4 x 20 characters
- RS-232/422: Selectable (9600, 38400, 57600, 115200) Baud RX, TX (default: 57600)
- LAN: Ethernet 10Base-T or 100Base-TX (Auto-sensing)
- WEB: Built-in website
- Temperature: 0°C to +50°C operational -40°C to +70°C storage
- Humidity: 10 to 90% non-condensing
- Altitude: 2000 m operational
- EMI/EMC compliance: EN 55022 Class B
- RoHS compliance
- Power consumption: 1500 W (max)
Manual
- (1) MX-FR65R 65x65 Crosspoint MX Modular Digital Router
- (2) Power Cable
