ACME Lightning
Description
Ships from outside of the United States
These ACME Lightning LED fixtures have heavy wear but are in good working condition. Power cables and other accessories are not included.
The ACME Lightning is an IP66-rated LED strobe, beam, and wash fixture built for demanding indoor and outdoor use, delivering dynamic strobe looks, punchy pixel beams, and a wide, soft flood wash from a single unit. Integrated Smart Glass Technology (patented) provides a DMX-controllable electronic frost that softens the output on cue for additional texture and diffusion effects.
Output and LED Engine

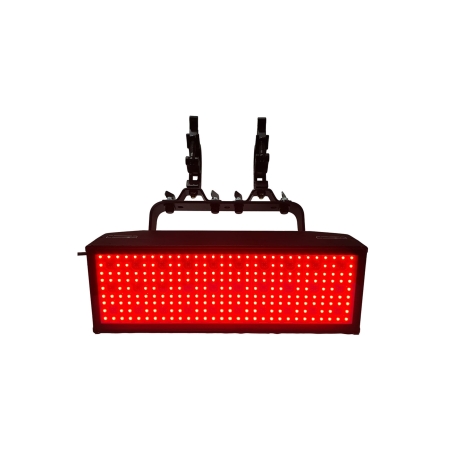

The LIGHTNING is powered by 240, 12-Watt RGBW LEDs and 30, 10-Watt cool white pixel beam LEDs. The RGBW LEDs are divided into 30 independent sections with a cool white LED centered in each color LED section, giving you layered looks that combine broad color wash with tight, cool white beam definition. The RGBW LEDs have a 102° beam angle while the cool white LEDs are at 3.5° for strong contrast between wash and beam effects. The fixture outputs a 6,300K color temperature and is rated for 20,000 hours of light source life.
Control, Networking, and Performance
For programming flexibility, the unit offers ten different DMX control modes and built-in effects macros, with control channel options ranging from 10 to 158 channels depending on the mode. It supports DMX512 and RDM, plus Art-Net and sACN over RJ45, making it suitable for both traditional DMX rigs and networked lighting systems. Flicker-free operation from 900 Hz to 25,000 Hz helps reduce on-camera artifacts, and you can tailor fades using 0 to 100% dimming with four user-selectable dimming curves. Firmware can be upgraded via a DMX link.
Rigging and Multi-Fixture Builds

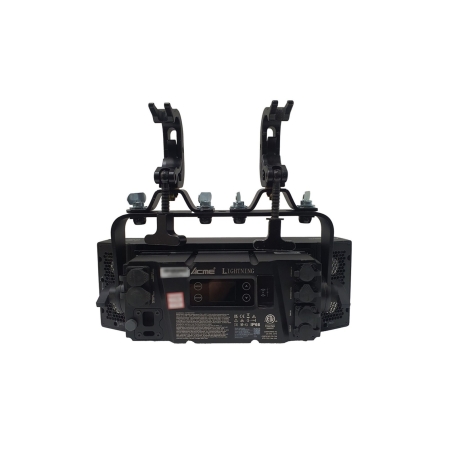

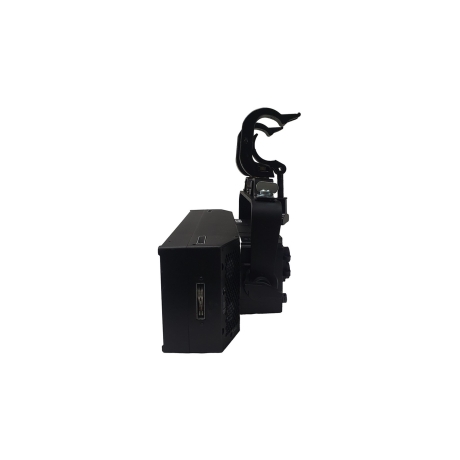

The LIGHTNING can be mounted in any orientation with its yoke. The yoke assembly has a center hole for clamps and two omega bracket attachment points. The unit also features camlocks on all sides and a hiding twist-lock design to quickly combine multiple fixtures side-to-side and top-to-bottom, helping you build aligned matrices for stage, broadcast, and architectural-style effects. Waterproof power in/out and waterproof data connections (3-pin or 5-pin XLR and RJ45) support cleaner, more reliable installs.
The ACME LIGHTNING changes and elevates the standard of strobe and wash lighting.
Additional Details
| Ships From: | Germany |
| Manufacturer: | ACME |
| Condition: | Good |
| Model: | LIGHTNING |
| Item #: | 62247 | Brokered |
| Tags: | Leds, Strip lights, Effects, Led effects/efx, Led outdoor ip rated, Led strips, Led wash, Other, Strobes |
- Light Source: 240 x 12W RGBW LED (30 controllable RGBW LED sections), 30 x 10W CW LED (30 CW LED sections)
- Color Temperature Output of Fixture: 6,300K
- Light Source Rated Life: 20,000 hours
- Beam Angle: RGBW: 102°; CW: 3.5°
- DMX Controllable Smart Glass technology
- 4 touch button control panel
- Display: LCD display
- Protocols: DMX512,RDM,Art-Net,sACN
- DMX Protocol Modes: 10
- Control Channels: 10/17/24/21/26/36/41/61/150/158
- Firmware Upgrade: Upgrade via DMX link
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Excellent RGBW color mixing
- Flicker free operation from 900 Hz to 25,000 Hz
- 30 powerful beams
- Hiding twist-lock design for quickly accessories-free combining
- Smart Glass technology for DMX controllable frost effects
- Equipped with an inventive quick-release mechanism that allows you to quickly connect and align multiple fixtures
- Input Voltage Range: 100-240Vac; 50/60Hz
- Power Consumption: 1,610W
- Power In/Out: Waterproof power connector in/out
- Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector
- Width: 483 mm (19.0")
- Depth: 212 mm (8.4")
- Height: 224 mm (8.8")
- Weight: 13.3 kg (29.3 lbs)
- (1) Lightning
- Power cables and other accessories are not included.
