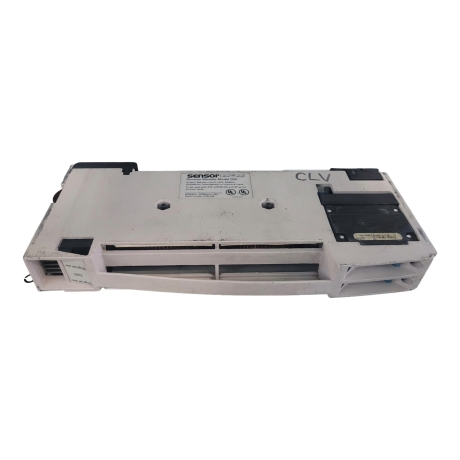

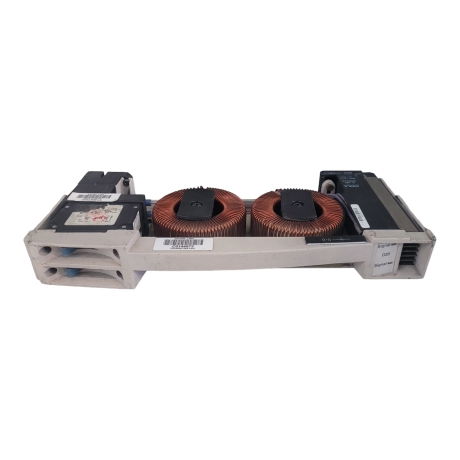

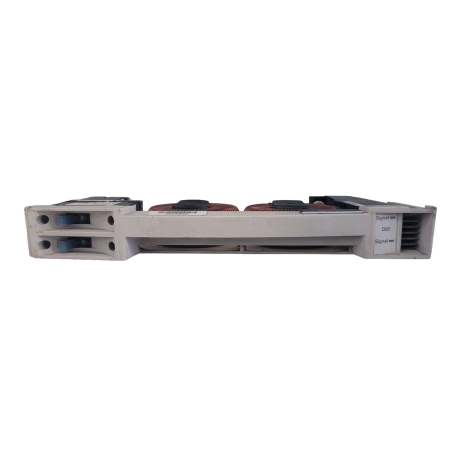

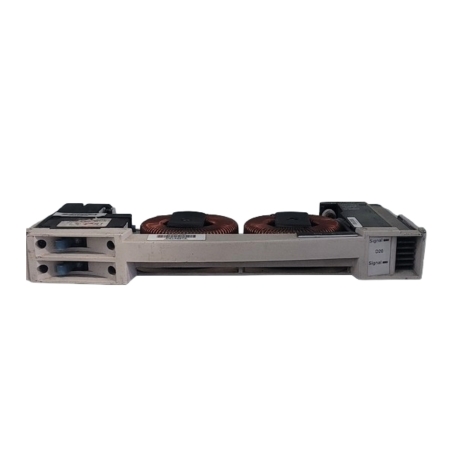

ETC D20 Dimmer Module (Pkg of 10)

Ships from outside of the United States

This listing is for a Package of (10) ETC D20 Dimmer Modules. They have heavy wear but are in good working condition.

Included in each Package are:

• (10) D20 Dimmer Module

The ETC D20 Dimmer Module is a dual 20A dimmer module built for ETC Sensor+ and Unison Dimming Series modular rack enclosures, delivering cost-effective digital forward phase angle dimming for a wide range of standard lighting loads. Its high-density, highly integrated Sensor design is engineered to reduce parts count and help minimize failure points in demanding, day-to-day venue operation.

Designed for Sensor+ and Unison Dimming Series Racks

Professionals choose ETC Sensor dimmer modules because they are cost effective and deliver maximum reliability with a minimum failure rate. Known for technical elegance, Sensor's highly integrated design means fewer parts for fewer failures. The Standard Dimmer Module is designed for use in both Sensor+ and Unison Dimming Series modular rack enclosures.

Forward Phase Dimming for Common Entertainment and Architectural Loads

Standard Dimmer Modules provide cost-effective digital forward phase angle dimming for standard loads such as incandescent, low voltage, quartz, neon, cold-cathode and 2 and 4-wire fluorescent ballasts. This makes the D20 a practical choice for venues that need dependable, familiar dimming behavior across mixed inventories, from conventional incandescent fixtures to compatible fluorescent ballast applications.

Key Hardware and Electrical Features

• Dual 20A Dimmer Module with two 2.4kW dimmers per module
• Standard or Enhanced risetime toroidal filters (to support cleaner dimming performance depending on system requirements)
• High-density modular assembly for straightforward installation and removal in compatible racks
• Die-cast aluminum chassis for durability in permanent rack environments
• Fully magnetic circuit breakers
• 100,000A Short Circuit Current Rating (SCCR)
• UL and cUL LISTED

Applications

• Incandescent lighting
• Low voltage lighting
• Quartz lighting
• Neon lighting
• Cold Cathode lighting
• 2-wire Fluorescent ballast
• 4-wire Fluorescent ballast
