d&b J8/J12 Line Array Package

Ships from outside of the United States

This listing is for a d&b J8/J12 Line Array Package. Included in this package are:

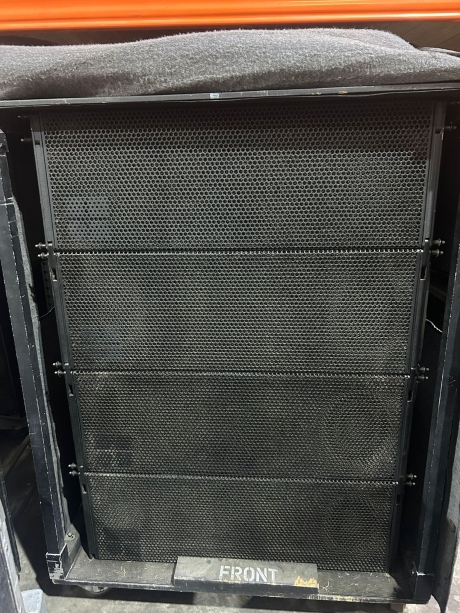

• (20) J8 Loudspeaker
• (4) J12 Loudspeaker
• (6) J-SUB Subwoofer

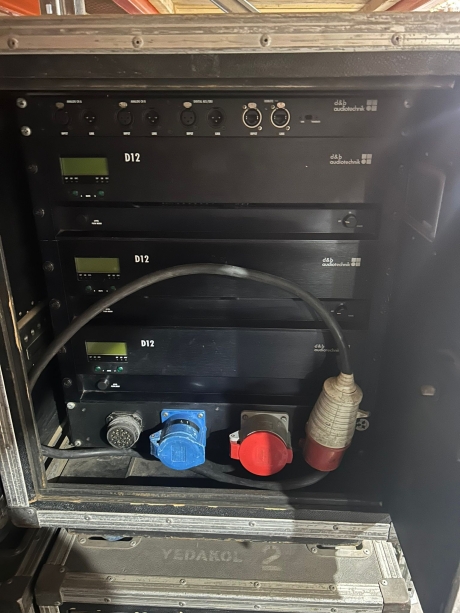

• (12) D12 Dual Channel Amplifier

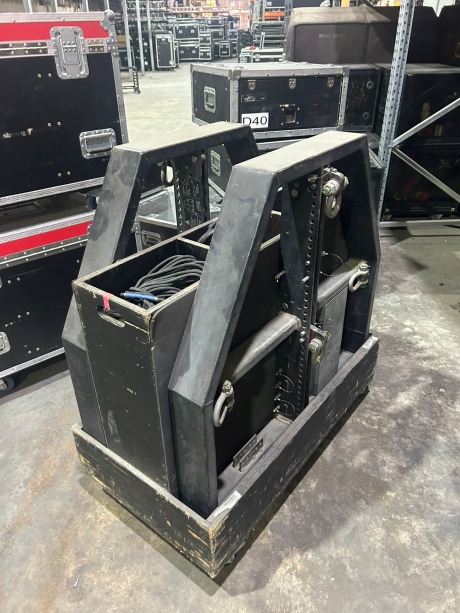

• (4) Fly Frame

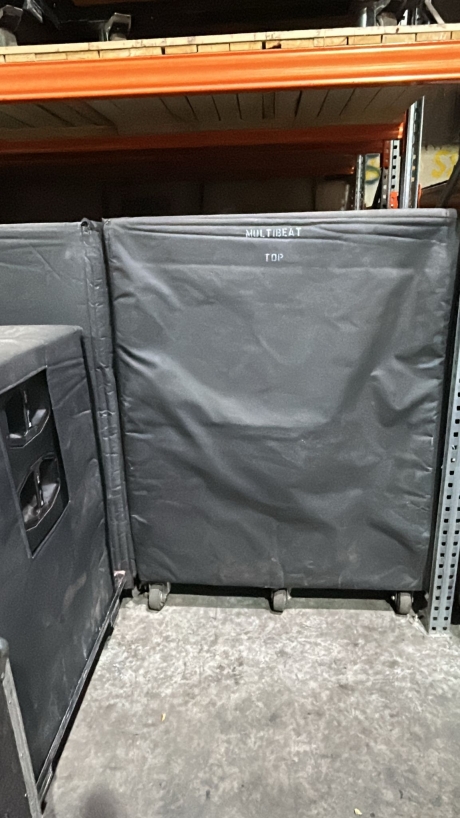

• Transport Dollies and Dust Covers are included.

These items show signs of heavy wear but are in good working condition.

The J8 and J12 loudspeakers are acoustically matched and constructed to be mechanically compatile sharing the same vertical directivity, size, footprint, weight, rigging and driver complement. The 3-way design featuring two 12" LF drivers, one hornloaded 10" MF driver and two 1.4" exit HF compression drivers with 3" voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design. The 80° horizontal constant directivity dispersion pattern of the J8 is maintained down to 250 Hz and its high output capability can cover a distance range of over 100 m (330 ft), depending on the climatic conditions. The J12 has a wider horizontal dispersion pattern of 120° maintained down to 250 Hz.

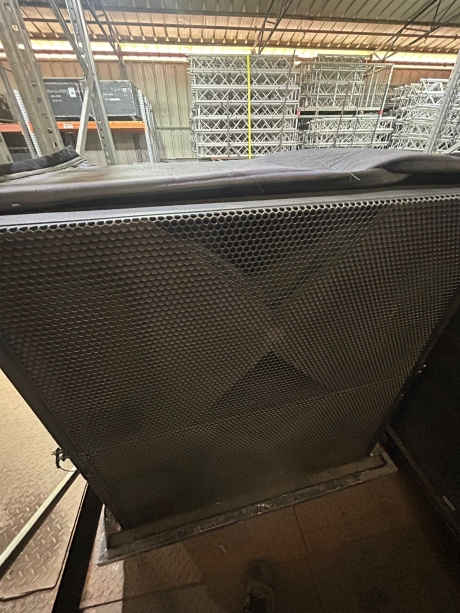

The J-SUB shares the same width as the J8 and J12 loudspeakers and is equipped with compatible flying fittings. The bass-reflex design uses three 18" high excursion drivers, one of which radiates to the rear to produce cardioid or hypercardioid subwoofer performance to avoid unwanted energy behind the system.
