Soundcraft Mini Stagebox 32i
Description
This Soundcraft Mini Stagebox 32i was purchased new, never used, and is in like new condition. It will ship in the original packaging.

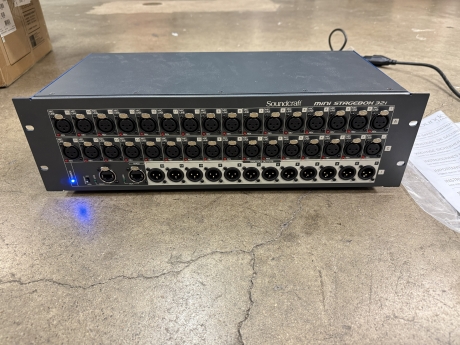

The Soundcraft Mini Stagebox 32i is a compact remote I/O expansion stagebox designed to expand the input and output capabilities of Soundcraft Vi and Si series consoles, whether you need the additional I/O at the console position or out on stage. With a 3U rack-mount footprint, it delivers 32 recallable mic/line inputs and 12 balanced line outputs, using the same console-family design approach for a familiar workflow.
Connectivity and Console Integration
The Mini Stagebox 32i connects to a host console using RJ45/CAT5, supporting up to 100 m (328 ft) runs between the stage and the mixing position for cleaner setups and fewer analog multi-core cables. Using two cables to a single console offers redundant MADI capability when the mode switch is set to "RED".
Audio can also be supplied to two different consoles by using the Main and Aux connections simultaneously. In this instance, one console should be nominated to have control of the mic input gains and phantom power. Set the switch to Main or Aux according to which console you have selected to have control.
Practical Advantages for Live and Installed Sound
The efficient design of the Mini Stagebox 32i negates the need for a fan, making it a strong fit for theatres, houses of worship, broadcast, and other applications where silent operation is important. The combination of remote controlled mic preamps with on-board AD conversion helps keep signal paths consistent and simplifies gain management from the console.
Key Specifications
- Inputs: 32 remote controlled mic preamps and AD converters
- Outputs: 12 XLR analog line level outputs
- Rack size: 3U
- Sampling frequency: 48 kHz
- Converter resolution: 24-bit
- Frequency response (stagebox mic input to stagebox line output, 4 dBu input signal, 4 dB input mic gain): 20 Hz to 20 kHz (+0.5 dB / -0.5 dB)
- Mains voltage operating range: 90 to 264 VAC, 47 to 63 Hz
- Power consumption: 50 W
- Dimensions (L x W x H): 21.2 x 16.6 x 9.4 in.
- Weight: 15 lb
Additional Details
| Ships From: | Cleveland, OH, USA |
| Manufacturer: | Soundcraft |
| Condition: | Like New |
| Model: | MSB-32i |
| Item #: | 61532 | Brokered |
| Tags: | Pro audio, Switchers, mixers & das |
- RJ45/Cat5 connectivity, for 100M runs between stage and mixing console (328 feet)
- 32 remote controlled mic preamps and AD converters
- 12 XLR analog line level outputs
- 3U Rack mount design
- Frequency Response: Signal path - Stagebox Mic input to Stagebox line output, 4dBu input signal, 4dB input Mic gain. 20Hz – 20kHz +0.5dB /- 0.5dB
- Sampling Frequency: 48kHz
- Converter Resolution: 24 bit
- Mains Voltage Operating Range: 90-264VAC, 47-63Hz
- Mains Power Consumption: 50W
- Box Dims (LxWxH): 21.2 x 16.6 x 9.4in.
- Weight: 15 lbs

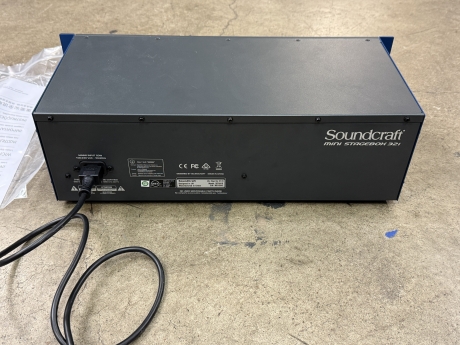

- (1) Mini Stagebox 32i
- (1) Power Cable
- Ships in original packaging
