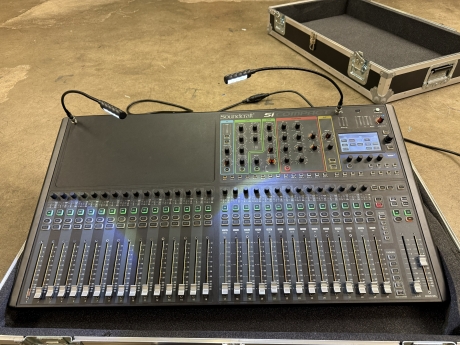

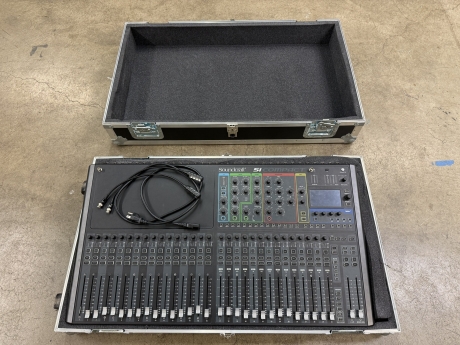

Soundcraft Si Compact 32 Digital Mixer w/ MADI Card

This Soundcraft Si Compact 32 Digital Mixer has of heavy wear. Fader #1 is bad and will need to be repaired, but the console is still functional and is in good working condition. It comes with a MADI card installed.

The Soundcraft Si Compact 32 Digital Mixer w/ MADI Card is a full-featured live sound console built for mixing bands, houses of worship, theaters, and event production in a compact footprint. It combines hands-on control with comprehensive channel processing and four stereo Lexicon effects engines, plus flexible onboard and expandable I/O for easy integration into existing rigs.

Mixing, Processing, and Effects

The Si Compact 32 features 32 recallable mic pre amps plus 4 stereo returns, AES in and a 64 input option slot with a capacity to combine up to 40 of these inputs to mix; each input is 'fully equipped' with compressors, gates, parametric EQ, High Pass Filter and delay. This lets you dial in dynamics, tone shaping, and timing correction per channel without relying on external processors.

All Si Compact consoles have buses and output processing to match the versatility of the inputs; all aux/group, master and matrix buses feature a compressor, parametric EQ, graphic EQ and delay always available all of the time. In practice, this supports clean monitor mixes, controlled subgroups, and precise system tuning directly from the console.

To complement the channel and bus processing all Si Compact consoles offer four Stereo Lexicon FX processors providing a wealth of sounds and user adjustable parameters; alongside the 21 graphic EQs that's a total of 25 processes that can all be used at the same time in addition to all the regular channel and bus processing.

Connectivity and System Integration

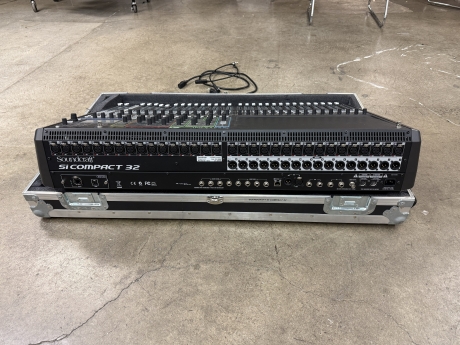

Flexible onboard and expansion I/O options ensure the Si Compact integrates effortlessly with other system components; along with the 32 mic inputs there are two pairs of stereo analogue line in, AES in and out, 16 analogue line outputs, headphone monitor out and a 64x64 channel expansion card slot capable of utilising any of the Si series option cards that includes AES, AVIOM, CobraNet and MADI. The installed MADI card supports connection to multi-track recording systems and enables linking the Si Compact to the Soundcraft/Studer stageboxes to extend I/O power and flexibility.

Workflow and Control Surface

Built on Soundcraft's acclaimed Si Series digital live sound mixers, the Si Compact keeps a comprehensive but 'simple to use' control surface while still delivering deep mixing capability. It is compatible with Soundcraft ViSi Remote, supports Harman HiQnet integration, and includes practical control tools such as mute groups, delays on inputs and outputs, and analogue insert send-return loops.

• 32 mono inputs and 4 stereo channels
• 14 sub-group / aux busses, 4 FX busses, 4 matrix busses, and LRC mix busses
• 4 Stereo Lexicon Effects engines
• Delay on inputs and outputs
• 4 mute groups
• AES in and out
• 4 analogue insert send-return loops
• Dimensions (HxDxW): 6.6" x 20.5" x 36.5" (168 x 520 x 928 mm)
• Weight: 42 lbs (19.2 kg)
