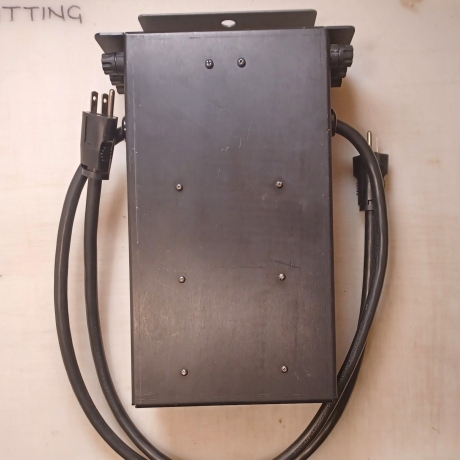

Lightronics AS62D 6x1200W Dimmer Pack

These Lightronics AS62D 6x1200W Dimmer Packs were previously used in an installation. They show minor wear but are in good working condition.

The Lightronics AS62D is a compact six channel lighting dimmer pack designed for controlling multiple 120V circuits from a lighting console or controller in permanent installs, studios, and small venue systems. Each channel supports up to 1200W, with a maximum total load of 4800W, making it a practical way to distribute control across several fixtures while keeping the power footprint manageable.

Power & Installation Notes

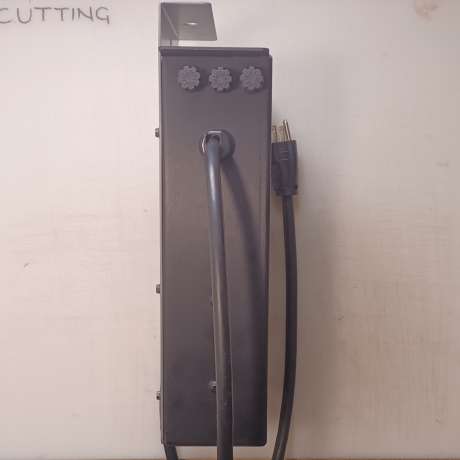

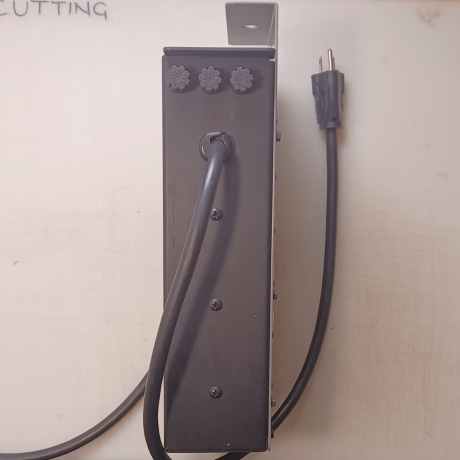

The AS62D is supplied with two input power cord stubs which may be connected to two different 120 VAC power phases. The AS62D is intended for INDOOR USE ONLY.

Control Protocols & Operating Modes

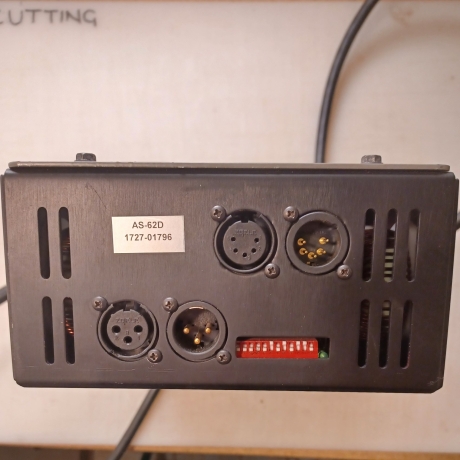

The unit operates using the USITT DMX-512 protocol or an industry standard three wire multiplex protocol (DMX-512 & LMX-128). For applications that require simple on/off switching instead of dimming, the AS62D may be operated in a relay (non-dim) mode. It will also function as a chaser and has several preset chase patterns which may be used, including 8 built in chases.

Outputs & Protection

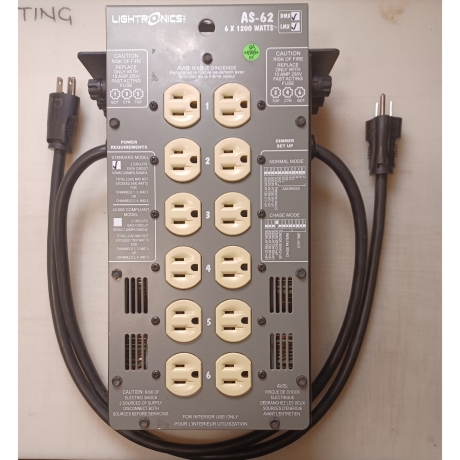

Built for common 120V systems, the AS62D provides Edison outputs and includes fuses for circuit protection.

• 6 channels
• 1200W per channel
• 4800W total capacity
• DMX-512 & LMX-128
• Relay mode switchable
• 8 built in chases
• Fuses
• Edison outputs
• 120V
