High End Systems SolaFrame 750

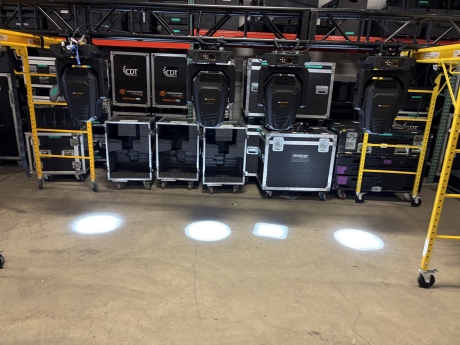

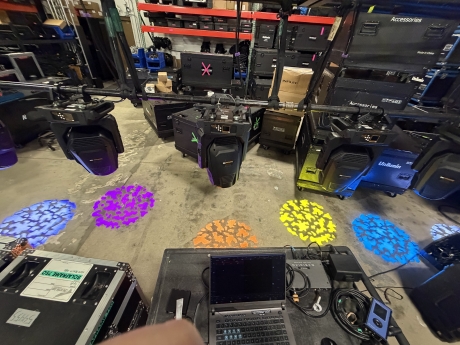

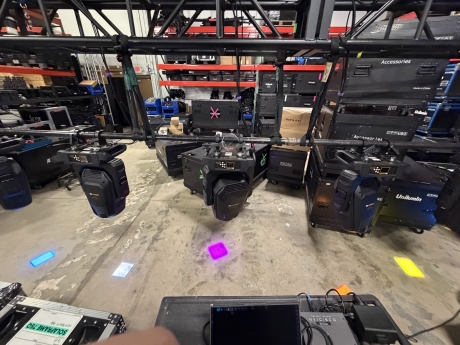

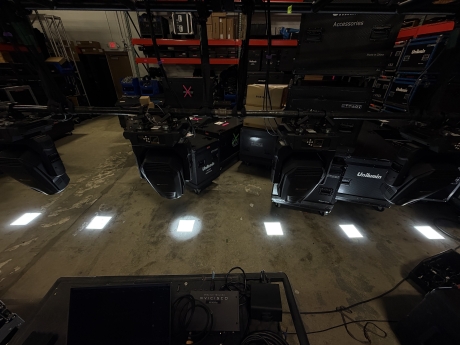

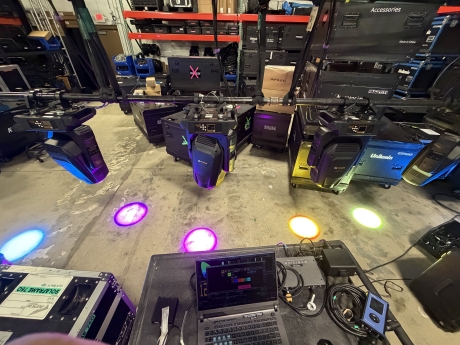

These High End Systems SolaFrame 750 LED moving lights show signs of wear but are in good working condition.

SolaFrame 750 is the smallest framing fixture in the Sola Series family of automated tools, built for smaller to medium-sized venues that need a compact moving head with professional framing control. With 11,300 lumens from a 270W bright white LED engine, it delivers punchy output for FOH, mid-throw, and stage positions where clarity and beam presence matter.

Designed for Versatile Venue Lighting

The SolaFrame 750 is a perfect fit for smaller to medium-sized venues, and its 11,300 lumens can easily cut through the competition. With 6 – 50 degree zoom, rotating gobo wheel plus fully continuous animation and more, the SolaFrame 750 offers the a wide array of effects.

Control and Networking Options

Integrate the fixture into modern lighting networks with DMX 512 and RDM, plus Art-Net and sACN over Ethernet (Ethernet in with passive thru). The fixture supports 47 DMX channels, giving programmers detailed access to movement, effects, and feature sets while maintaining compatibility with standard console workflows.

Cooling, Serviceability, and Touring Practicality

For real-world reliability in venues and road cases, the SolaFrame 750 uses modular construction and a fast service design. Active thermal control and electronic cooling system control help manage heat, with fan modes for different environments (Standard, Continuous, and Studio). A full-color LCD display with battery mode simplifies addressing and setup when power is not available at the hang point.

Movement, Connectivity, and Physical Details

• Pan: 540 degrees, Tilt: 265 degrees (with pan and tilt locks)
• Max speed pan: 360 degrees in 2.27 seconds, Max speed tilt: 180 degrees in 1.31 seconds
• Connections: 5-pin DMX/RDM, Ethernet in/passive thru, PowerCON TRUE1
• LED life: 50,000 hours to 70% luminous output
• Dimensions: 26.2" x 17.5" x 12.7", Weight: 28.6 kg (63 lbs)
