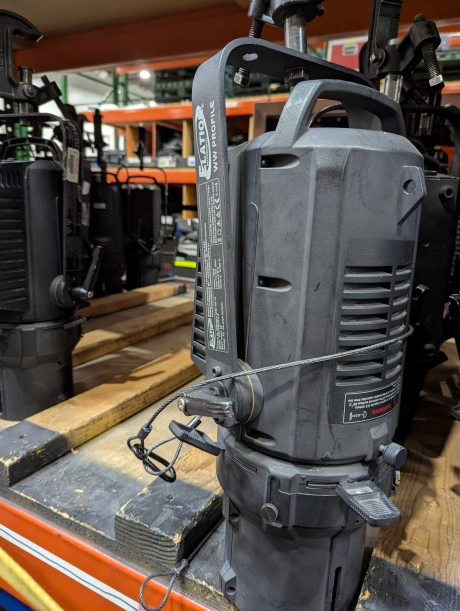

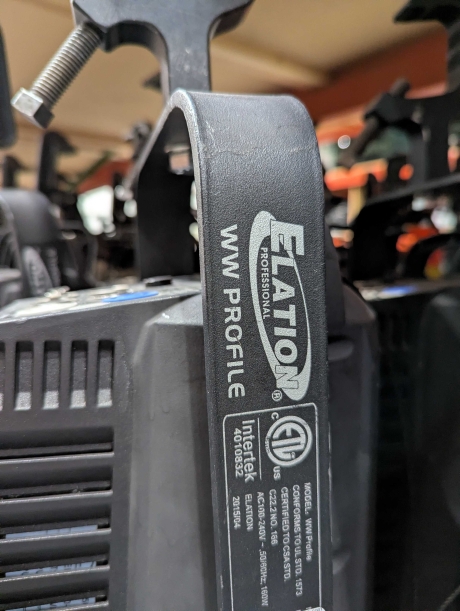

Elation WW Profile LED Leko Body

These Elation WW Profile LED Leko Bodies show signs of wear and tear, but are in good working condition. Lens tubes are not included.

The Elation WW Profile LED Leko Body is a warm white LED ellipsoidal profile fixture designed for clean, controllable front light, key light, and pattern projection in theater, broadcast, and live event rigs. It uses a 130W warm white 3,000K LED engine with >94 CRI for accurate skin tones and camera-friendly color, delivering up to 6,700 total lumens (with a 26° lens) while drawing only 160W max.

Light Quality and Output

Built around a high-efficiency LED source rated at 42 lumens per watt and an average 50,000-hour LED life, the WW Profile is well suited for venues that need consistent output with lower power draw. The warm white 3,000K color temperature and high CRI help maintain natural color rendition on stage and on camera.

Beam Control and Shaping

The fixture supports 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), allowing you to match beam angle to throw distance and coverage needs. For precise focus and shaping, it includes manual focus and (4) blade manual framing shutters. It also supports B size metal HT transparency gobos for projecting breakup patterns and logos.

DMX and Onboard Control

For integration into standard lighting control workflows, the WW Profile offers DMX-controlled electronic strobe, dimming, and selectable dimming curve modes, with two DMX channel modes (1 or 4). A 4-button control panel with an LED menu display provides quick access to settings on the fixture.

Power, Connectivity, and Operation

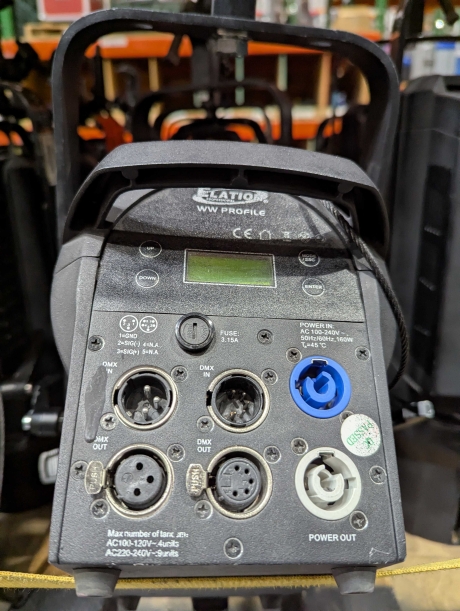

Designed for touring and installed systems, it features 3/5-pin DMX in/out and powerCON in/out connections, plus a multi-voltage universal auto-switching power supply (100-240V). Quiet fan cooling helps keep operation unobtrusive in performance spaces, and flicker free operation supports TV and film applications.
