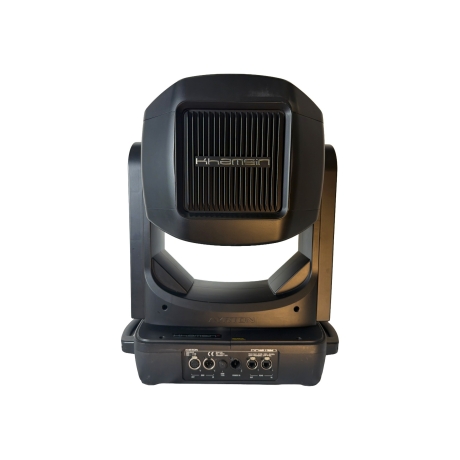

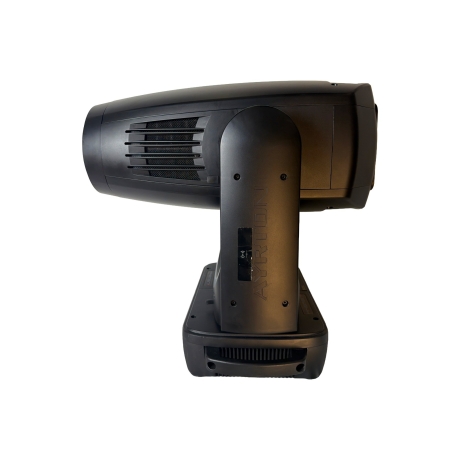

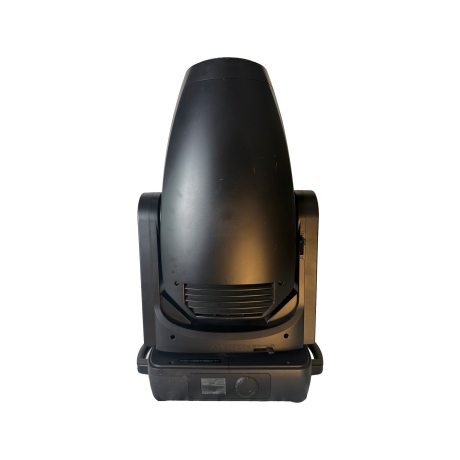

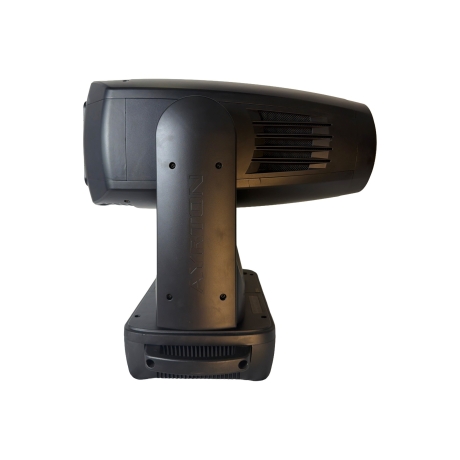

Ayrton Khamsin S
Description
These Ayrton Khamsin S LED Profile moving lights have heavy wear but are in good working condition. Power cables and other accessories are not included.
Ayrton Khamsin S is a compact LED profile moving head designed for scenic lighting in large venues, delivering powerful metallic white light and a flexible feature set for precise beam shaping, texturing, and aerial effects. Built around a proprietary 13-lens optical system with a 158 mm front lens, it provides an 8:1 zoom range from 7° to 58° for everything from tight projection to wide coverage, with a uniform flat beam and consistent color mixing.
Optics, Output, and Camera-Friendly Performance
Khamsin S uses a high-output white LED engine with total luminaire output up to 40,000 lumens, and is specified with color temperature outputs of 7000 K and 6800 K, plus flicker-free source management suited to TV applications and recorded events. The tempered, anti-reflective coated lenses support clean projection and smooth zooming, and the electronic dimmer provides 0 to 100% adjustment without color shift.
Color Mixing and Beam Control
The fixture includes a CMY color mixing system paired with variable CTO for fast color temperature correction, plus a fixed color wheel with six complementary colors for expanded looks. For beam shaping, the framing module provides four individually positionable shutter blades that can cover 100% of the beam surface in all positions, with framing system rotation of +/- 45° to keep cuts aligned to the scene.
Gobos and Effects for Texture and Motion
For projection and animation, Khamsin S features two indexable rotating gobo wheels (6 high-precision HD glass gobos each, plus open) with adjustable-speed rotation in both directions. Gobo specs are 34.0 mm diameter, 24.0 mm image diameter, and 1.1 mm thickness. The effects section also includes a focusable graphic animation wheel with continuous rotation, a fast 15-blade iris (15% to 100% open) with dynamic effects, two frost filters (light and heavy), and two rotating/indexable prisms (5-facet circular and 4-facet linear). A strobe function supports 1 to 25 flashes per second.
Movement, Accuracy, and Physical Specs
High-resolution stepper motors with microprocessor control support smooth, accurate movement, with 8- or 16-bit operation, pan/tilt automatic repositioning, and a movement range of 540° pan and 270° tilt. The fixture measures 494 x 778 x 280 mm (L x H x D) and weighs 39.8 kg (87.74 lbs).
Additional Details
| Ships From: | Nashville, TN, USA |
| Manufacturer: | Ayrton |
| Condition: | Good |
| Model: | 011640 |
| Item #: | 62143 | Brokered |
| Tags: | Moving lights, Leds, Ayrton, Led moving lights |
- 13 elements 8:1 zoom high-resolution optic system
- Beam aperture: 7° to 58°
- Fast motorised linear zoom
- Tempered anti-reflective coated lenses
- 158 mm frontal lens for greater performance
- 60,000 lumens 8000 K white light engine, Total luminaire output: up to 40,000 lumens,
- Colour temperature output: 6800 K
- CRI: greater than 70
- Rated life (L70): up to 40,000 hours
- Flicker-free source management suitable for TV applications and all video-recorded events
- Extremely accurate positioning
- Moving-head operated via either 8 or 16 bit resolution
- High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
- Pan and tilt automatic repositioning
- Moving-head range: 540° (pan), 270° (tilt)
- Sophisticated color mix system providing CMY color mixing
- Variable CTO color temperature correction
- Fixed color wheel with six complementary colors
- 2 indexable rotating gobo wheels with 6 high-precision glass gobos, plus open position
- Adjustable-speed rotating gobo in both directions
- Gobo diameter: 34.0 mm
- Image diameter: 24.0 mm
- Gobo thickness: 1.1 mm
- 4 individually positionable shutter blades on a 100% surface area in all positions
- Rotation of the framing system module: +/- 45°
- Fast iris diaphragm with adjustable dynamic effects
- Iris range: 15% to 100% open
- 2 frost filters: one light, one heavy
- Focusable graphic animation effect-wheel with continuous rotation in both directions
- 2 rotating and indexable prisms: one 5-facet circular, one 4-facet linear
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation
- Strobe effect, with speed adjustment from 1 to 25 flashes per second
- Dimensions: 494 x 778 x 280 mm (l x h x d)
- Weight: 39.8 kg / 87.74 lbs
- (1) Khamsin S
- Power cables and other accessories are not included.
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Nashville, TN, USA
