Mega Lite XS LED Strobe W (Pkg of 4)

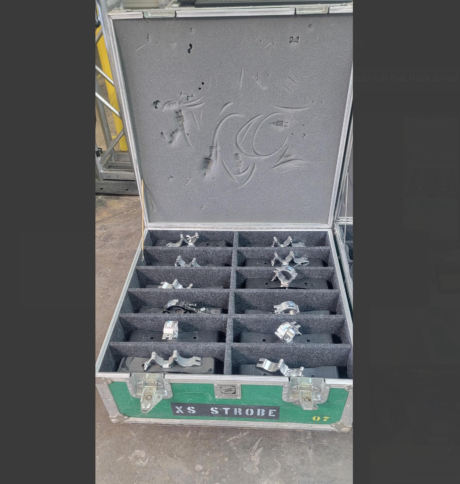

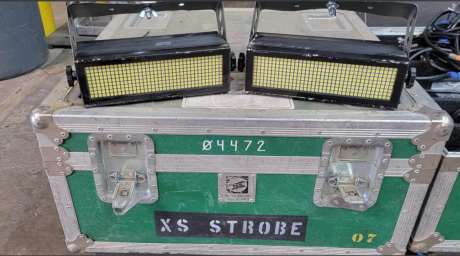

This listing is for a Package of (4) Mega Lite XS LED Strobe W fixtures. They show signs of wear, but have been well maintained and are in good working condition. A road case is included with a purchase of 12 units (3 packages).

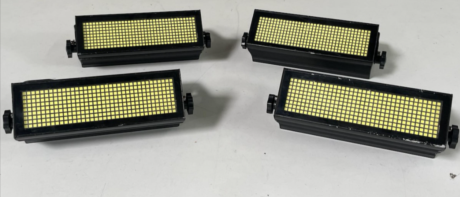

The Mega-Lite XS LED Strobe RGB is an immensely bright, versatile LED fixture designed for high-impact strobe looks and wide-area color wash. It is equipped with a total of 324 RGB SMD LEDs with a wide 140° LED angle, letting you cover broad stages, dance floors, scenic elements, and architectural surfaces with vivid color, or switch to energetic strobe effects when the moment calls for it.

The XS LED Strobe RGB can be lined up in multiples to build a matrix for chases and other eye-catching effects. With 3 segments of control, you can create movement and patterning across the fixture face for more dimensional looks than a single-zone strobe or wash.

DMX Control and Operating Modes

The XS LED Strobe RGB is controlled via DMX 512 and offers dimmer, red, green, blue, strobe, macro, and 3 segment macro control, depending on the mode selected. It includes 4 modes of operation, from simple RGB control to expanded control for programming and effects:

• Mode 1 (3 channels): R, G, B
• Mode 2 (7 channels): Dimmer, R, G, B, Strobe, Macro
• Mode 3 (8 channels): Dimmer, R, G, B, Strobe, Macro, 3 Segment Macro
• Mode 4 (9 channels): R, G, B, x3

Control options include display control and master/slave operation, making it suitable for both DMX systems and straightforward linked setups.

Connections, Power, and Physical Details

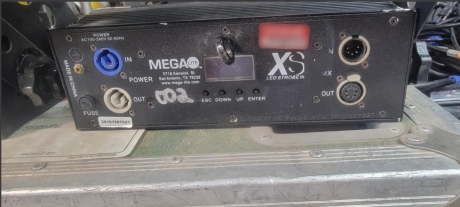

Built for professional integration, the unit features 5 pin XLR in/out for DMX and PowerCon in/out for power. It uses an electronic auto-switching ballast and accepts 110V-240V, 50/60 Hz input. Power consumption is 165 W (2.49 A). A digital display supports quick configuration on site.

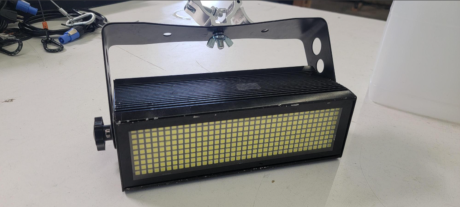

The XS LED Strobe RGB includes a single mounting yoke and stays compact for touring rigs and tight installs, measuring 13.66" x 4" x 7.12" and weighing 6.5 lbs. Thermal ratings include a max ambient temperature of 104° and a max surface temperature of 140°. LED lifetime is rated at 60,000 to 100,000 hours.
