Martin MAC Aura Raven XIP (Pkg of 2)

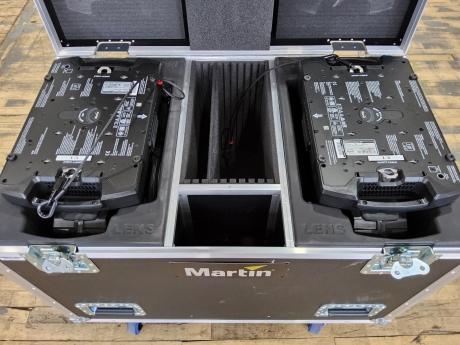

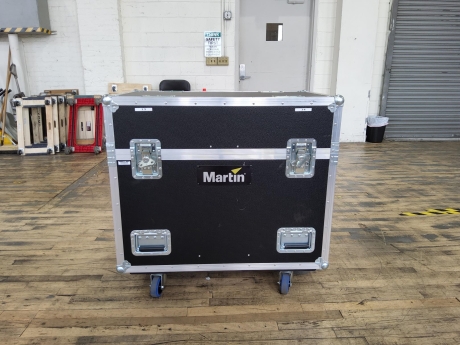

This listing is for a Package of (2) Martin MAC Aura Raven XIP LED moving lights. These fixtures have minor wear and are like new condition. A dual road case is included.

The Martin MAC Aura Raven XIP is a premium moving head fixture that combines wash, beam, eye-candy, and smart weatherproof functionality for powerful indoor or temporary outdoor lighting. Built for lighting designers, rental companies, and installations, it delivers reliable performance for festival stages, theatrical productions, corporate events, and broadcast applications.

High-Output Wash and Beam Performance

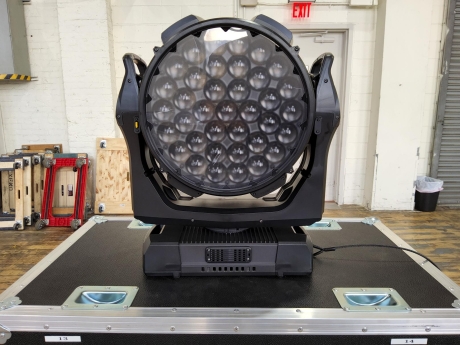

At the core of MAC Aura Raven XIP is an industry-leading light engine delivering 27,000 lumens of output. A massive 343 mm (13.5 in) front lens supports a bright, high-intensity beam and a clean wash field designed for smooth, even coverage. The belt-driven zoom is significantly enhanced for extremely fast, near-silent operation, with a wide 6 to 51 degree range for both tight beam looks and wide stage washes.

RGBL Color for Better Skin Tones On Camera

MAC Aura Raven XIP uses an RGBL (Red, Green, Blue, Lime) LED engine to improve overall color quality and rendering (CRI, TM-30, TLCI). In practice, this helps produce more natural skin tones and more pleasing whites, which is especially valuable for theater, corporate key light, and broadcast environments.

Pixel-Mapped Aura Effects and a Discreet Dark-Lens Look

For eye-candy and pixel-mapped looks, an array of 234 individual RGB LEDs positioned behind the front lens creates an enhanced pixelated Aura backlight effect. You get full pixel-control over 37 main LEDs and the 234 Aura backlight LEDs, enabling intricate chases, low-resolution content, and layered effects while still keeping a strong wash/beam tool in the same fixture. A dark lens provides a more discreet appearance in the rig and increases contrast for the Aura backlight visuals.

Control, Networking, and Setup Tools

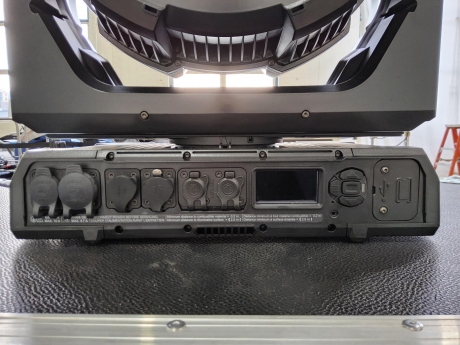

MAC Aura Raven XIP supports DMX, Art-Net, sACN, and Martin P3 control, making it easy to integrate into touring rigs, permanent installs, and media-server workflows. Martin P3 can also simplify setup, configuration, and the mapping and mixing of DMX with video. For faster on-site prep, the fixture includes a battery-powered display for configuration without mains power, plus an NFC interface for configuration and diagnostics via the Companion Mobile App. A Universal Connect Module slot supports third-party wireless modules when your system design calls for cable-free data links.

Built for Touring and Temporary Outdoor Use

MAC Aura Raven XIP features XIP smart weatherproof technology for temporary outdoor use, supporting event days that face changing conditions without forcing you into an IP20-only approach. Practical handling details, including yoke handles and easy upside-down flipping, help crews move, rig, and maintain consistent orientation across the rig. The fixture is also designed to be compact and lightweight for its class at 28.8 kg (63.5 lbs.).

Dimensions and Installation Spacing

• Width (across yoke): 528 mm (20.8 in.)
• Width (base): 429 mm (16.9 in.)
• Height (head forward): 588 mm (23.1 in.)
• Height (maximum): 603 mm (23.7 in.)
• Depth (head): 241 mm (9.5 in.)
• Depth (base): 285 mm (11.2 in.)
• Minimum center-to-center distance (side-by-side): 540 mm (21 in.)

Unleash the power of light with the MAC Aura Raven XIP. Experience unparalleled performance, superior light quality, and cutting-edge features – experience the flagship MAC Aura Raven XIP.
