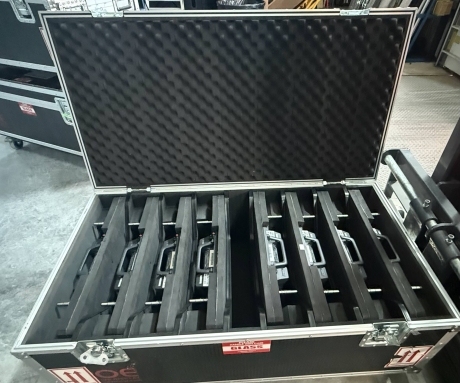

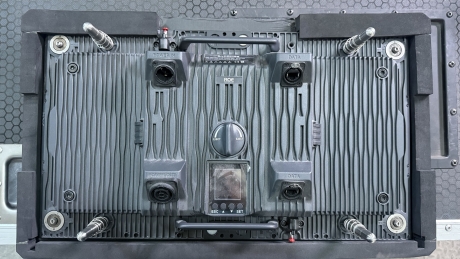

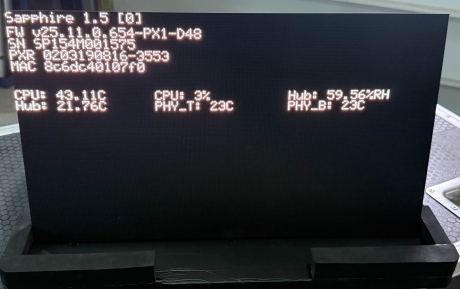

Roe Sapphire 1.5mm LED Video Tile Package

This listing is for a Roe Sapphire 1.5mm LED Video Tile Package. These items were previously used for corporate events. They show signs of wear and tear, but are in good working condition.

Included in this package are:

• (232) Sapphire 1.5mm LED Video Tile

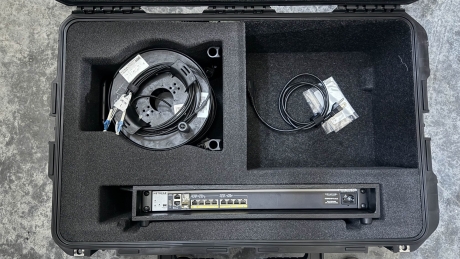

• (5) Helios Megapixel Processor
• (13) Netgear Switcher
• (11) 2-Channel LC Fiber Reels
• (58) 2x2 Frames
• (30) 1x2 Frames
• (30) 1m Ladder
• (12) .25mm Ladder
• (10) Double Footer/Hang Bar
• (12) Single Footer/Hang Bar
• (12) Base Stabilizer
• (72) Rear Bridge

Built for high-end indoor applications, the ROE Visual Sapphire platform is a Narrow Pixel Pitch (NPP) LED panel system designed to deliver detailed, close-view visuals while remaining practical for rental workflows and repeat builds. With a 1.54mm pixel pitch and a 3840 Hz refresh rate, Sapphire is well-suited for corporate stages, broadcast and camera-facing environments, and premium meeting spaces where image stability and fine detail matter.

System Design for Fast Builds and Creative Configurations

The ROE Visual Sapphire is the first Narrow Pixel Pitch (NPP) LED panel platform that combines outstanding visual brilliance with a clever assembly system. Designed to meet high performance standards while using a small pixel pitch, Sapphire’s unique system of intersecting frames allows for maximum creativity and ease-of-assembly. Seamless assembly through system of intersecting layers, allowing for various creative solutions. Creating a single solid assembly that uses less hardware and applies less force to the individual panels. Keeping to an aspect ratio of 16:9 in all configurations. The unique concept of separating the frames from the actual LED panels saves valuable production time and offer cost-effective renting. The Sapphire platform can be used in a wide range of indoor applications and hence accommodates both rental and fixed uses.

Performance and Serviceability

• 1.54mm pixel pitch for crisp imagery at closer viewing distances
• 800 nit max brightness (calibrated) for consistent output across the wall
• 3840 Hz refresh rate for smooth motion and reduced on-camera artifacts
• Front serviceability for easier maintenance when rear access is limited
• Power consumption: 100W max / 50W average per panel
• BTU (max/average): 341 / 157

Panel Specifications

• Panel dimensions: 494.4 x 278.1 x 86 mm (19.46" x 10.95" x 3.4")
• Panel resolution: 320 x 180 (HxV)
• Weight per panel: 4.5kg (9.9lbs) | 33.0kg / m² (6.7lbs / ft²)

This package includes Sapphire 1.5mm LED video tiles along with Helios Megapixel processors, Netgear switchers, 2-channel LC fiber reels, and a full assortment of frames, ladders, hang bars, base stabilizers, and rear bridges to support common build and rigging needs for event and installation use.
