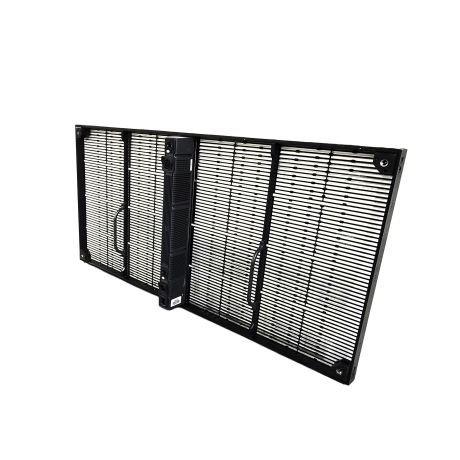

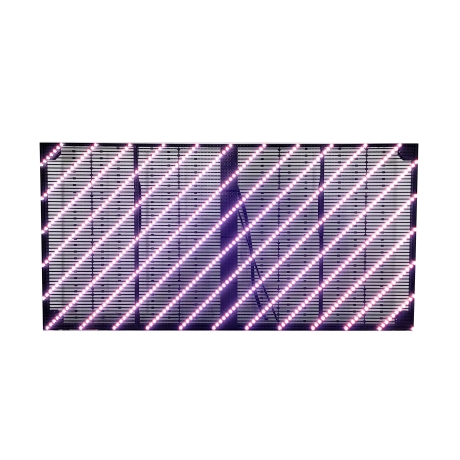

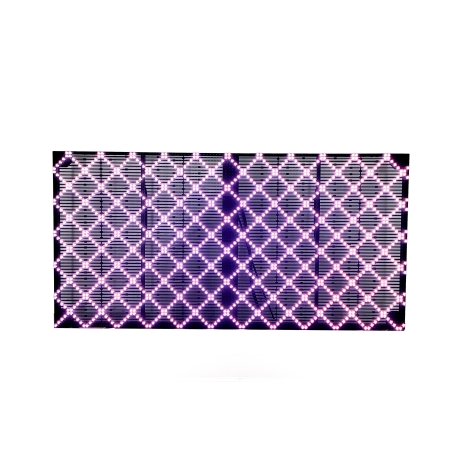

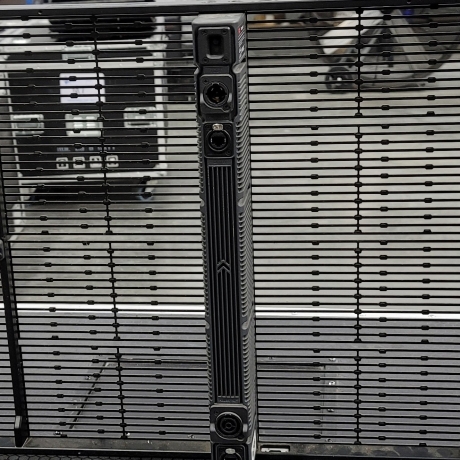

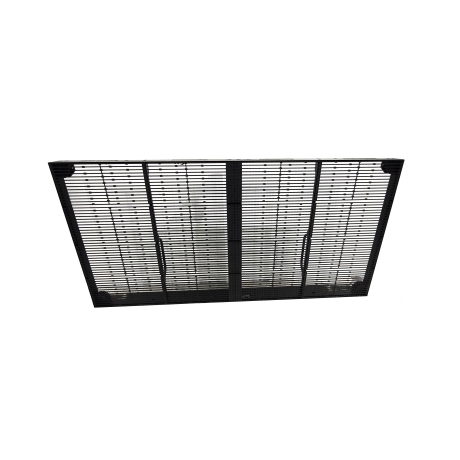

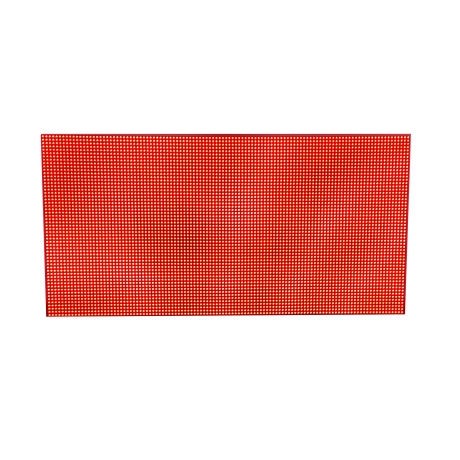

Roe Vanish V8 8.9mm LED Video Tile Pkg
Description
This package includes:
- (28) Vanish V8 8.9mm LED Tile
- (116) V8 Left LED Module
- (125) V8 Right LED Module
- (28) Ethercon Cable
- (28) 12/3 Jumper, Powercon True1
- (2) Evision HD102 Processor
- (20) 2-Way Connector Plate (Gen1)
- (30) 4-Way Connector Plate (Gen1)
- (4) 8-Unit Road Case
They may show signs of heavy wear but are in good working condition.
The Vanish V8 is the smallest and lightest member of the Vanish series of transparent LED panels. With a transparency of 60%, this LED panel offers outstanding performance through its high-brightness and excellent viewing angles. The ideal solution for indoor events and concerts.
Additional Details
| Ships From: | United States |
| Manufacturer: | ROE |
| Condition: | Fair |
| Model: | Vanish V8 |
| Item #: | 61064 | Brokered |
| Tags: | Leds, Pro video, Led panels, Led video tiles |
- Pixel Pitch: 8.9mm
- LED Configuration: SMD 1515 Black
- Max Brightness Calibrated: 2500nits
- Power Consumption Max/Average: 320W / 160W
- BTU Max/Average: 1090 / 500
- Transparency: 60%
- Serviceability: Front
- Curving (Concave & Convex): Concave 15° ~ Convex 5°
- Viewing Angle Vertical: 140°
- Viewing Angle Horizontal: 160°
- Refresh Rate: 6576Hz
- Gray Scale: 16bit
- Scan Ratio: 1/4
- Operational Temp/Humidity: -20°C ~ 45°C, 10% ~ 90% RH / -4°F ~ 113°F, 10% ~ 90% RH
- Storage Temp/Humidity: -40°C ~ 60°C, 10% ~ 90% RH / -40°F ~ 140°F, 10% ~ 90% RH
- IP Rating: Indoor
- Certifications: CE, ETL, FCC
- Max. Hanging: 24 panels
- Max. Stacking: 12 panels
- Panel Dimension: 1000mm x 500mm x 35mm / 39.4” x 19.7” x 1.4”
- Panel Resolution (H x V): 112 x 56
- Weight Per Panel: 6.5kg / 14.33lbs
- (28) Vanish V8 8.9mm LED Tile
- (116) V8 Left LED Module
- (125) V8 Right LED Module
- (28) Ethercon Cable
- (28) 12/3 Jumper, Powercon True1
- (2) Evision HD102 Processor
- (20) 2-Way Connector Plate (Gen1)
- (30) 4-Way Connector Plate (Gen1)
- (4) 8-Unit Road Case
We need to verify the shipping cost on this item to ensure the best price for you. One of our team members will be in contact with you with a shipping quote for your approval after checkout. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: United States
