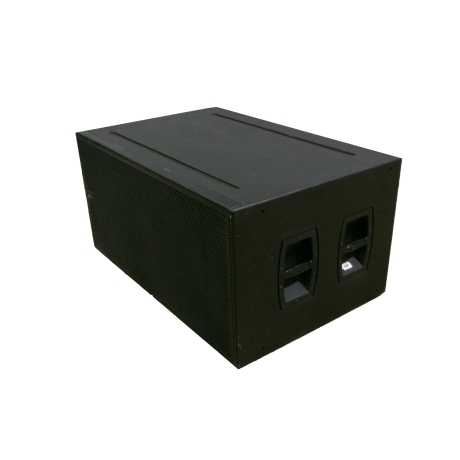

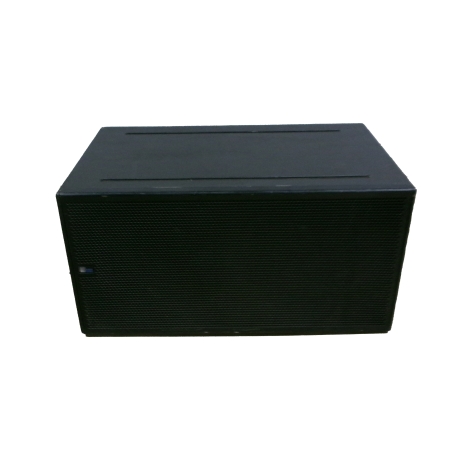

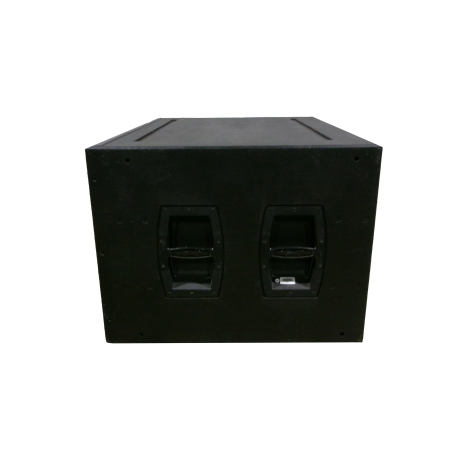

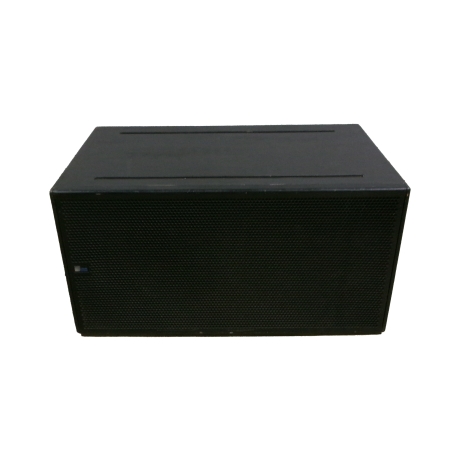

Meyer 700-HP Subwoofer (Pkg of 2)
Description
Package of (2) Meyer 700-HP Ultra High-Power Subwoofers. They show signs of wear and tear, but are in good working condition. Included in this package are:
- (2) 700-HP Subwoofer
- (2) Male Edison to Female L6-20 Adapter
- (1) Transport Dolly
- (1) Ratchet Strap
- (2) Cover
The Meyer Sound 700-HP ultrahigh-power subwoofer sets a new standard for the power-to-size equation. The 700-HP’s power and bandwidth handle high continuous operating levels and extreme transient information with minimal distortion in its operating frequency range.
Meyer Sound’s rigorous design approach has been applied to extract the greatest efficiency from every part of the system, resulting in the 700-HP subwoofer's effortless reproduction of low-frequency transient information. The transducers, amplification and control electronics of the selfpowered 700-HP are created as a symbiotic system that optimizes performance and maximizes its tremendous power.
The operating frequency range of 28 Hz to 150 Hz complements other Meyer Sound loudspeakers and line and curvilinear arrays in sound reinforcement applications requiring maximum headroom at the low end of the frequency spectrum.
Features
- Stackable
- Extremely low distortion for ultimate low-frequency clarity
- Very high peak power yields excellent transient reproduction
- Ultra-efficient neodymium magnet drivers
- Operating Frequency Range: 28 Hz - 150 Hz
- Free Field Frequency Response: 30 Hz - 125 Hz ±4 dB
- Phase Response: 45 Hz - 145 Hz ±30°
- Maximum Peak SPL: 139 dB
- Dynamic Range: >110 dB
- Type: Differential, electronically balanced
- Maximum Common Mode Range: ±15 V DC, clamped to earth for voltage transient protection

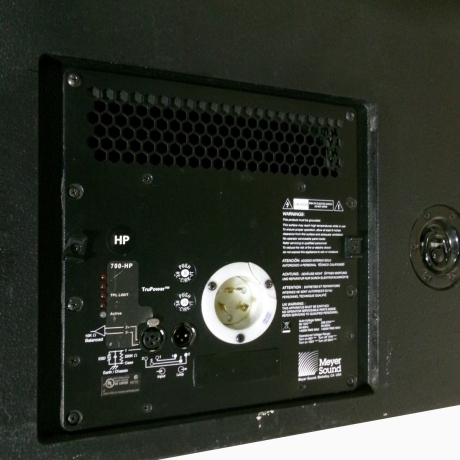

- Connectors: Female XLR input with male XLR loop output or VEAM all-in-one (integrates AC, audio and network)
- Input Impedance: 10 kΩ differential between pins 2 and 3
- Wiring: Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies, Pin 2: Signal +, Pin 3: Signal -
- DC Blocking: None on input, DC blocked through signal processing
- CMRR: >50 dB, typically 80 dB (50 Hz–500 Hz)
- RF Filter: Common mode: 425 kHz, Differential mode: 142 kHz
- TIM Filter: Integral to signal processing (
Additional Details
- (2) 700-HP Subwoofer
- (2) Male Edison to Female L6-20 Adapter
- (1) Transport Dolly
- (1) Ratchet Strap 2"
- (2) Cover
We need to verify the shipping cost on this item to ensure the best price for you. One of our team members will be in contact with you with a shipping quote for your approval after checkout. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: United States
