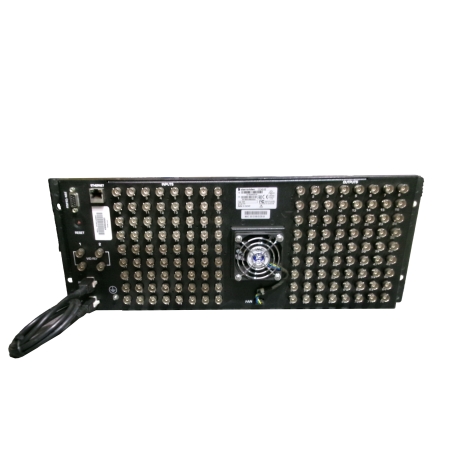

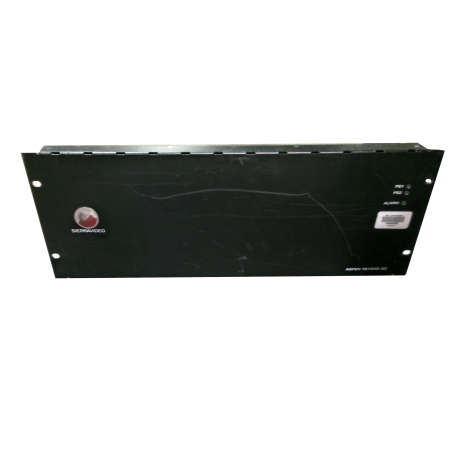

Sierra Video Aspen 7272HD-3G Routing Switcher
Description
These units may show signs of heavy wear but are in good working condition.
The Sierra Video Aspen 7272 HD-3G routing switchers are compact units offering digital video boards that work with SDI video SMPTE 259M-C, HD SMPTE 292M, and 3G SMPTE 424M. These unique routing switchers can also route DVB-ASI signals.
This item has been listed by a member of our worldwide community. Buying a brokered item like this is the perfect way to purchase hard to find equipment at a great price. All brokered item sales include a 72 hour (3 business days) quality inspection window. Once the item arrives, just let us know if you are unsatisfied- your purchase is guaranteed by UsedLighting.com!
Features
- Max Data Rate - 2.97Gbps.
- Multi-Standard Operation - SDI (SMPTE 259M & SMPTE 344M), HD−SDI (SMPTE 292M), 3G HD−SDI (SMPTE 424M) and dual link HD−SDI (SMPTE 372M).
- System Range - 500' (155m) at max data rate.
- Looping Sync Input - Composite or Tri-sync.
- Input Equalization - Per input.
- Re-Clocking - 5 modes: auto, bypass, 3G HD-SDI, HD-SDI & SD per input.
- Local Control Panel - Multi-color I/O & function buttons.
- RS-232, RS-485, RS-422 & Ethernet.
- Supports TCP/IP Protocol - Rear Panel RJ-45 connector.
- WEB Browser Control.
- TyLinx Pro Router Control Software
- Dimensions: (4U) 7.0" (178mm) x 19" (483mm) x 2.5 (64mm)
- Weight: 7 lbs (3.2kg)
- (1) Aspen 7272HD-3G Routing Switcher
- (1) Power Supply
