NEW ADJ Focus Spot 5Z
Description

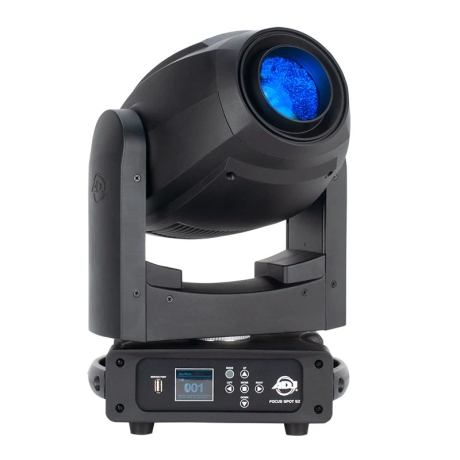

The ADJ Focus Spot 5Z is a compact 200W cool white LED moving head spot designed for temporary live events and fixed installations in nightclubs, stages, or churches. Built around a brilliant LED engine with motorized focus and a motorized 11 to 22-degree zoom, it delivers tight aerial beams and crisp projections, then quickly adapts to wider looks when you need more coverage.
Optics and Effects for Versatile Looks
The Focus Spot 5Z is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS (5 aluminum and 1 glass GOBO), plus two COLOR wheels, each with 8 vibrant colors plus white. For atmospheric beam enhancement and texture, it includes 2 rotating/indexable prisms (one 5-facet linear and one 6-facet circular) and two frost effects (heavy frost and light frost). The dual frost filters help soften edges and create wash-like output for broader stage looks.
Control, Connectivity, and Power Daisy-Chaining

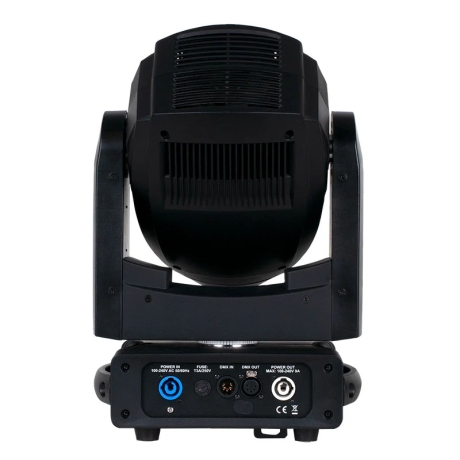

Advanced control options include 16-bit fine pan and tilt for smoother movement, multiple DMX control modes, and 6 different dimming options for tailoring fade response to your show style. It also features various strobe speeds for rhythmic accents. For streamlined rigging, the Focus Spot 5Z provides locking power In and out connectors to daisy chain power, along with 5-pin DMX In/Out to pass signal fixture-to-fixture. A built-in USB firmware update port supports quick maintenance and updates.
Tour-Friendly Size and Cooling
Designed to balance output with portability, the Focus Spot 5Z offers robust light output in a lightweight, compact footprint (18-inch high and 23 pounds). Two cooling fans help manage heat for consistent performance across long sets and repeated cues.
Key Specifications
- 200W Cool White LED Engine (50,000 hr.)
- Motorized Zoom: 11 ~ 22-degrees
- 2 Frost Filters to create wash effects
- 2 Prism FX: Rotating 5-facet Linear rotating 6-facet Circular
- 0-100% smooth dimming, plus various strobe speeds
- 8 dichroic colors + white on two separate wheels (includes CTO, CTB and UV filters)
- USB firmware update port
- 2 cooling fans
- Dimensions: 7.15” (L) x 10.97” (W) x 18” (H) (181.5 x 278.61 x 457.4mm)
- Weight: 23 lbs. / 10 kg
Additional Details
| Ships From: | United States |
| Manufacturer: | ADJ |
| Condition: | Brand New |
| Model: | FOC520 |
| Item #: | 59998 |
| Tags: | Moving lights, Leds, Adj |
- 200W Cool White LED Engine (50,000 hr.)
- Motorized Focus
- 2 Frost Filters to create wash effects
- Motorized Zoom: 11 ~ 22-degrees
- 2 Prism FX: Rotating 5-facet Linear rotating 6-facet Circular
- 0-100% smooth dimming
- Various strobe speeds
- USB firmware update port
- 2 cooling fans
- 8 dichroic colors + white on two separate wheels (includes CTO, CTB and UV filters)
- Dimensions: 7.15” (L) x 10.97” (W) x 18” (H) (181.5 x 278.61 x 457.4mm)
- Weight: 23 lbs. / 10 kg.
- (1) Focus Spot 5Z
- (1) Power Cable
- (1) Omega Bracket
