DiGiCo SD12-96 Mixing Console w/ D2-Rack
Description
This DiGiCo SD12-96 Mixing Console comes with a DMI-MADI card and a DMI-Waves card. A D2-Rack is also included with this mixer. These items show signs of wear but are in good working condition.
Compact in size but big on features, the SD12 96 raises the bar as a multi-application digital console at an exceptionally affordable price point. Not only is the SD12 96 a true sonic powerhouse, it is the first in the SD-Range to feature an integrated recording interface which makes virtual sound checking a snap.
Designed to provide optimum performance in live touring, corporate, install, house of worship, theatre and broadcast environments, the SD12 96 incorporates the latest generation Super FPGA technology and Core 2 software to deliver unrivalled power and connectivity in a compact frame.
Designed for even easier operation, the SD12 96’s DVI display output provides an overview of the console, while brighter LED meters and a DiGiCo Lightbar ensure optimum visibility.
This item has been listed by a member of our worldwide community. Buying a brokered item like this is the perfect way to purchase hard to find equipment at a great price. All brokered item sales include a 72 hour (3 business days) quality inspection window. Once the item arrives, just let us know if you are unsatisfied- your purchase is guaranteed by UsedLighting.com!
Features
- Faders: 26 x 100mm touch-sensitive, motorised
- Screens: 2 x 15” LCD high – resolution touch screens
- Input Channels: 96
- Busses: 48 plus masters Aux / Group busses with full processing Mono / Stereo / LCR
- Matrix: 12 Input / 8 Outputs with full processing
- Control Groups: 12, selectable for VCA-style, Moving fader, Mute Group
- Graphic Eq: 16 x 32-band, Gain +/- 12dB
- Internal FX: 12 stereo effects comprising of reverbs and delay/chorus/pitch/enhancer

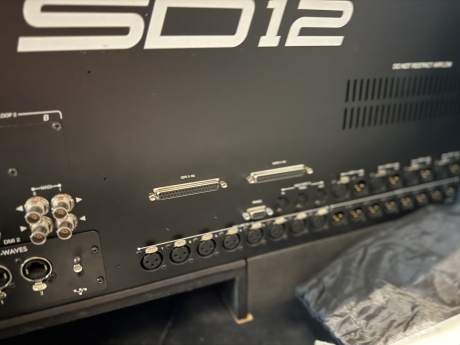

- Local I/O: 8 x mic/line I/O, 8 x AES I/O
- MADI interface: 2 Interfaces, BNC connectivity
- Optic interface: Optional
- Sampling rates: 48kHz / 96kHz
- GPIO: 2 x DSub37
- DMI: 2 x DiGiCo Multichannel Interface
- Ext Sync: Wordclock, MADI, Optics
- SD12 Dimensions: 1124 mm (w) x 795 mm (d) x 389 mm (h)
- Sample rate: 96kHz or 48kHz
- Processing delay: 1ms Typical (channel, SD-Rack input through L-R buss to stage output @96kHz)
- Internal processing: Up to 40-bit, floating point A>D & D>A 24-bit Converter Bit Depth
- Frequency response: +/- 0.6dB (20Hz – 20kHz)
- THD:
Additional Details
| Ships From: | Bozeman, MT, USA |
| Manufacturer: | Digico |
| Condition: | Good |
| Item #: | 60603 (Brokered) |
| Tags: | Pro audio, Packages, Consoles, Switchers, mixers & das |

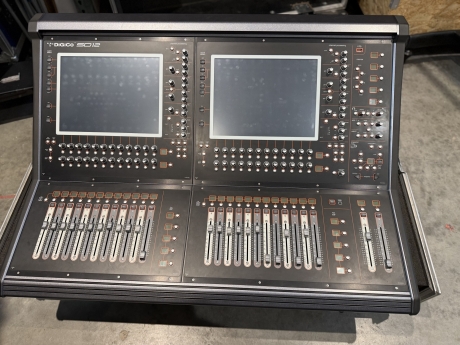

- (1) SD12-96 Mixing Console, 96 Channels

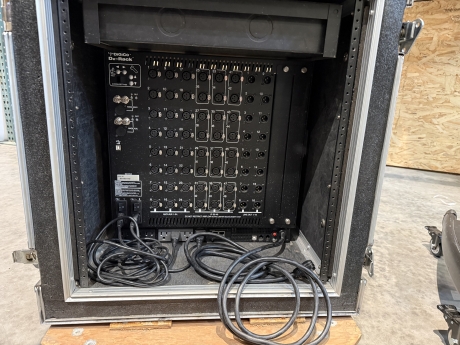

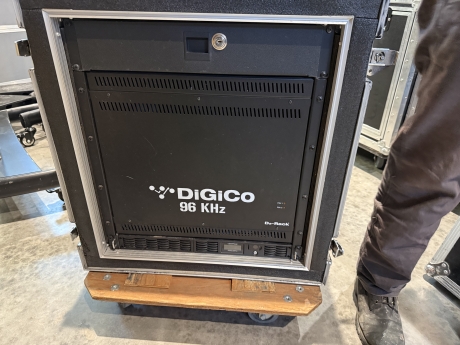

- (1) D2-Rack w/ Case
- (1) Road Case (for mixer)
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Bozeman, MT, USA
