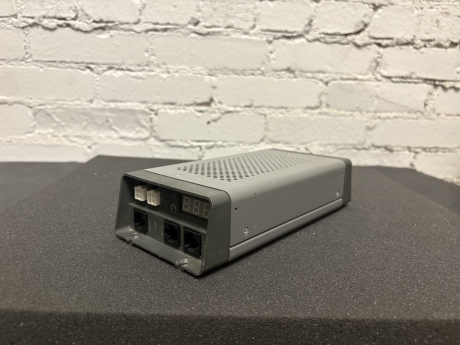

Philips sPDS-60ca 24V Power/Data Supply

Description

Features

• Compatible with both Ethernet and DMX controllers.
• Delivers 62 watts of total output and accommodates input voltages ranging from 100 VAC to 240 VAC. All power and data connections are made via an external panel, for reduced installation time.
• Short-circuit protection prevents failure due to incorrectly wired fixtures
• Onboard push-button controls incorporate the ability to program base light addresses and configure light groups, eliminating the need for additional addressing tools or software.
• Philips Color Kinetics 109-000021-02 Specifications:
• Input Voltage: 100 – 240 VAC, auto-switching, 50 / 60 Hz
• Maximum Input Current: 1.7 A at 100 VAC, 1.5 A at 120 VAC, .75 A at 240 VAC
• Power Output: 24 VDC, 62 W maximum
• Dimensions: 2.0" H x 4.0" W x 8.8" D (52 x 102 x 224 mm)
• Weight: 2.0 lbs (0.91 kg)
• Construction: Aluminum case with impact resistant, injection-molded plastic end caps, surface mount design
• Finish: Gray and black matte
• Connectors:
• Data RJ-45 input and output connectors
• Power Output: (2) 4-pin output ports
• Power Input: IEC 320 receptacle type C13, locking clamp
• Operating Temperature: 14° – 122° F (-10° – 50° C)
• Humidity: 0 – 95%, non-condensing
• Cooling: Thermostatically controlled fan with serviceable filter
• Airflow: Top cover input, back panel output
• Heat Dissipation: 25% of total power input at maximum load
• Data Input: Philips full range of controllers, third-party DMX controllers, or KiNET-compatible* third-party Ethernet controllers
• *KiNET is the standard Ethernet lighting protocol from Philips Color Kinetics.
• Classification: UL Class 2 power supply
• Environment: Dry Location, IP20
