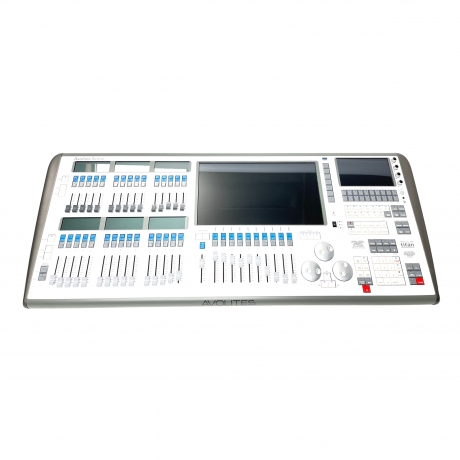

Avolites Arena Console

The Avolites Arena Console is a professional lighting control desk built for larger shows that need a bigger, faster control surface and reliable connectivity across a networked lighting system. Arena offers a bigger control surface, with future-proof connectivity for larger systems.

Hands-on Playback Control

Arena is designed for live busking and programmed playback, with 40 playback faders and screen-based labelling on every fader, so you can keep cues and looks clearly identified during a show. In addition to the faders, it includes 4 rotary playback encoders, 20 Macro / Executor buttons, and a dedicated Grand Master fader for immediate overall intensity control.

Dual Touchscreen Workflow

For quick navigation and visual feedback, the console features a 15.6 inch high-brightness touchscreen plus an additional 7 inch touchscreen. It also supports one additional touchscreen, which is useful for expanding workspace for palettes, playback pages, or system monitoring.

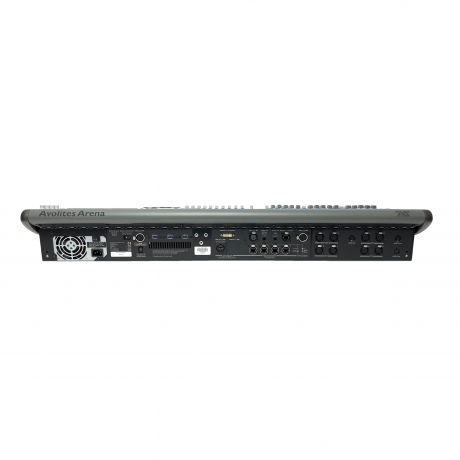

Connectivity and System Integration

Built with larger rigs in mind, Arena includes an integrated 1Gb network switch for streamlined networking and a 1Gb OpticalCON stage link for robust stage connectivity. Avokey security is built-in, and an integrated UPS helps protect operation during brief power interruptions.

Control Hardware and Physical Specs

• 3 high-quality optical encoder wheels
• Dimensions: 42.2" x 16.9" x 5.9" (1072 x 428 x 150 mm)
• Weight: 50.7 lbs (23 kg)
